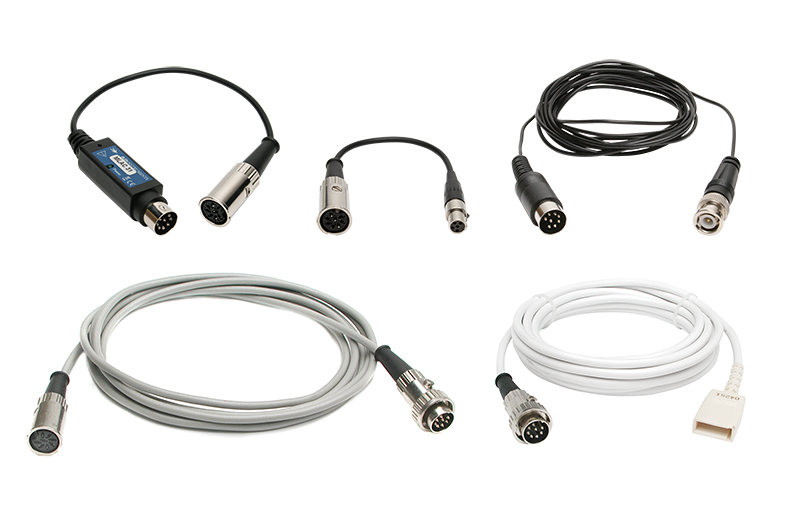

DINケーブルおよびアダプタ

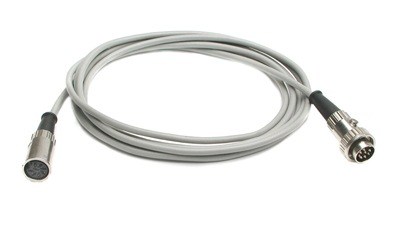

A DIN (8-pin) to DIN (8-socket) extension cable (3 m).

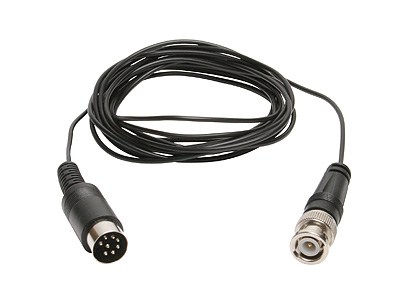

A DIN (8 socket) to BNC Cable (2 m) used to connect any device with a BNC output to the Pod port input of a PowerLab.

Special restrictions apply to the PowerLab 26T:

• This cable CAN be used to connect any ADInstruments Signal Conditioner (but not Pods) to Inputs 3 or 4 pod ports.
• It CANNOT be used to connect the analog output of a third party device to Inputs 3 or 4 pod ports - for this you will require the BNC to DIN Smart Adapter and BNC to BNC cables.

Used to connect either the Disposable BP Transducer (no stopcock) or Disposable BP Transducer (stopcock) to any ADInstruments Bridge Amp.

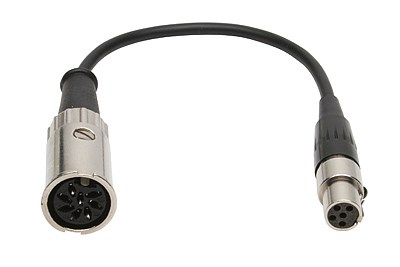

A DIN (8 socket) to Audio (5 pin) adapter cable used to attach transducers (with DIN plugs) to the ML301 Bridge Pod.

The cable is 200 mm long.

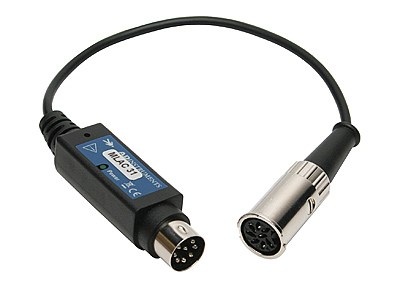

Allows inputs 3 & 4 on the PowerLab 26T to connect to transducers (with DIN plugs) or any other external devices with DIN connections.
