GSR電極

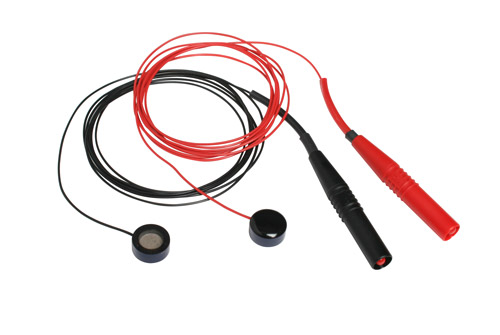

A pair of 8 mm diameter electrodes, made from a fine grain, homogeneous mixture of silver-silver chloride (Ag-AgCl) compressed and sintered for strength and stability. Electrodes are 1 mm thick, encapsulated in durable housings, and supplied with an 1.5 m PVC insulated lead wires. These electrodes may be placed and attached via suitable tape (not supplied) on a variety of locations on the human body as deemed fit by the experimental protocol. Suitable skin resistance/conductance electrode paste is recommended for use with these electrodes to improve skin contact and GSR recording quality.

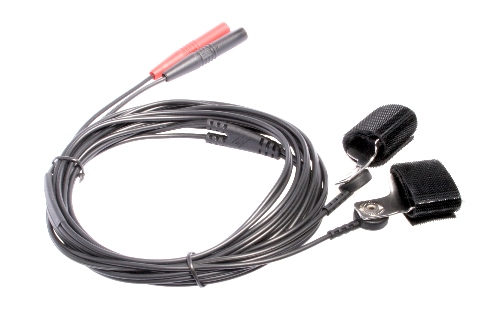

A pair of bipolar finger electrodes that are made from brightly polished stainless steel finger plates and are fitted with Velcro tape. The finger electrodes connect to the included adapter cable via a snap fitting. The cable is approx 2m long. Use of conductive gel with these electrodes is not recommended. These electrodes are supplied standard with the GSR Amp.

A pair of silver/silver chloride (Ag-AgCl), contoured finger electrodes that are Magnetic resonance (MR) safe.

Included with the electrodes:

• Velcro straps
• 5 m cable
• 2 x 4 mm shrouded connectors

Suitable skin resistance/conductance electrode paste is recommended for use with these electrodes to improve skin contact and GSR recording quality.

This product is not currently available for purchase in the EU.
