概観

レーザードップラーニードルプローブは血流計向けのプローブです。直接接続が可能で、微小血管の測定など様々なアプリケーションに対応できるよう、様々なタイプをご用意しております:

  • 組織表面からの侵襲的血流
  • 組織表面からの非侵襲的血流
  • 中動脈脳閉塞(MCAO)および脳卒中アプリケーションにおける脳微小血管血流
  • 筋肉、腫瘍、内臓、脳組織内の血流
  • 歯肉や鼻粘膜などの専門的アプリケーションにおける血流測定

プローブの種類によっては、外部クランプ(外部購入)を使用してプローブを位置決めすることができます。また、ショートニードルプローブタイプのプローブを、露出した動物の頭蓋骨に直接固定するためのミニチュアホルダーもご用意しております。

血流計と一緒に出荷されるプローブは工場で校正されており、校正の必要はありません。プローブを別途購入する場合はキャリブレーションキット(別途購入)が必要です。キャリブレーションキットの校正液には使用期限がありますのでご注意ください。

Product Configurations

Standard Needle Probe

製品コード
MNP100XP
A standard, robust needle probe for invasive or non-invasive blood flow measurements in relatively inaccessible areas with limited clearance and soft tissue. Attached to 3 m total cable length, the probe has a 16 mm long and 5 mm diameter collar, which is fitted with a 30 mm long, 1 mm diameter medical grade stainless steel needle.

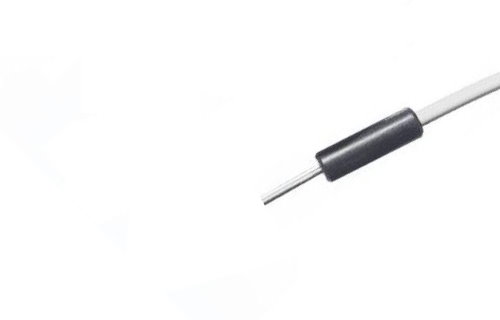

Short Needle Probe

製品コード
MNP100XP-3/10
A needle ideal for cerebral microvascular blood flow measurements in MCAO and stroke research. Dedicated miniature holders for securing the probe are available separately. Attached to 3 m total cable length, the probe has a 16 mm long and 5 mm diameter collar, which is fitted with a 10 mm long, 1 mm diameter medical grade stainless steel needle.

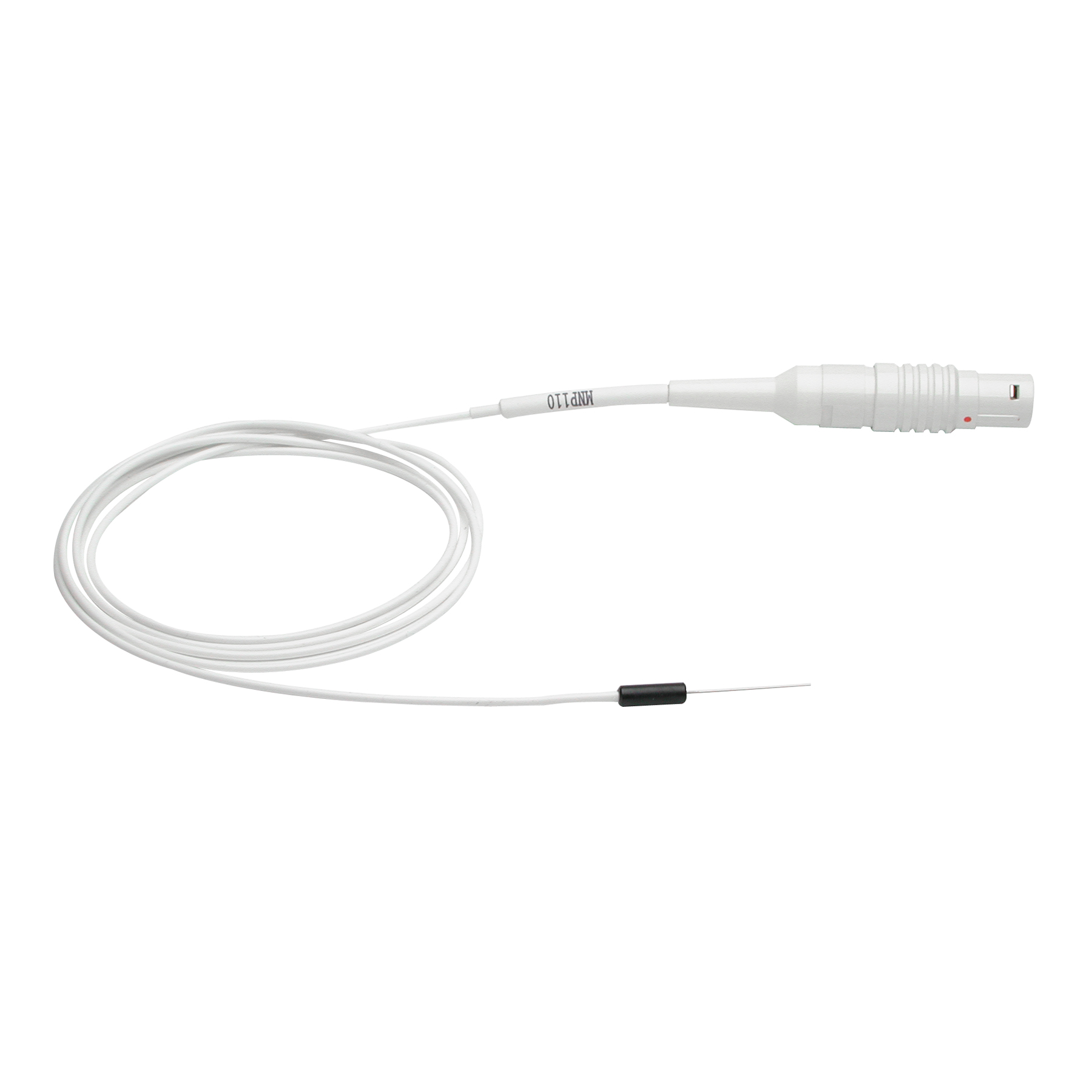

Fine Needle Probe

製品コード
MNP110XP
This micro-needle probe has been developed for minimal tissue trauma during invasive insertion and is frequently used for measuring microvascular blood flow within muscle, tumours, internal organs and brain tissues. Attached to 3 m total cable length, the probe has a 16 mm long and 5 mm diameter collar, which is fitted with a 30 mm long, 0.5 mm diameter medical grade stainless steel needle.

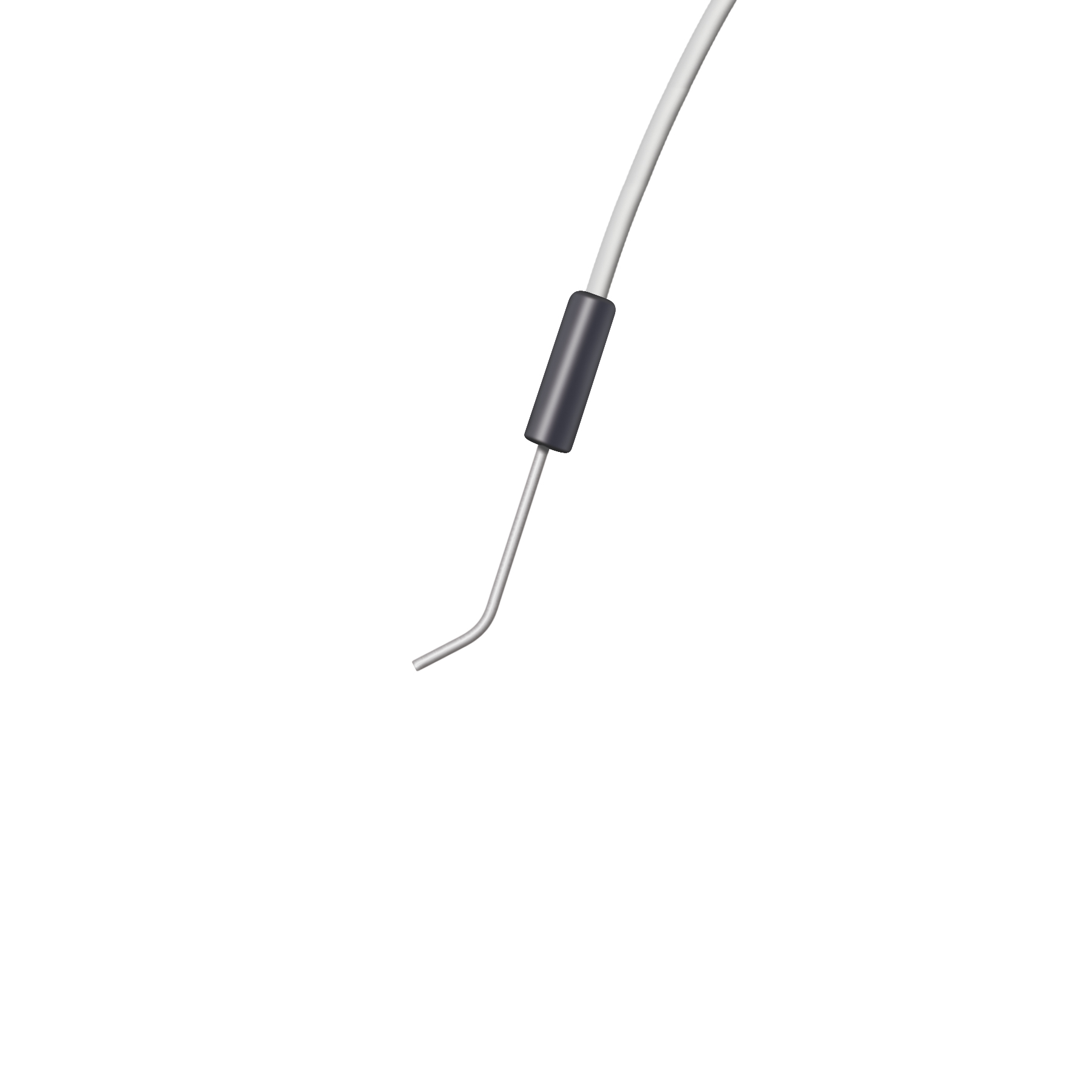

Bent Tip needle Probe

製品コード
MNP150XP
An angled probe tip that facilitates blood flow measurements in specialist applications such as gingiva and nasal mucosa. Attached to 3 m total cable length, the probe has a 16 mm long and 5 mm diameter collar, which is fitted with a 30 mm long (bent at 25 mm), 1 mm diameter medical grade stainless steel needle.

Lab Builder – Find the right products for your research.

1Select your research area

2Use our smart guide to tell us your needs

3Get instant product recommendations

    Try Lab Builder

    サポート

    サポート記事

    Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.

    詳細と技術仕様

    製品コード

    MNP100XP
    Standard Needle Probe
    MNP100XP-3/10
    Short Needle Probe
    MNP110XP
    Fine Needle Probe
    MNP150XP
    Bent Tip needle Probe
