Equivitalアクセサリー

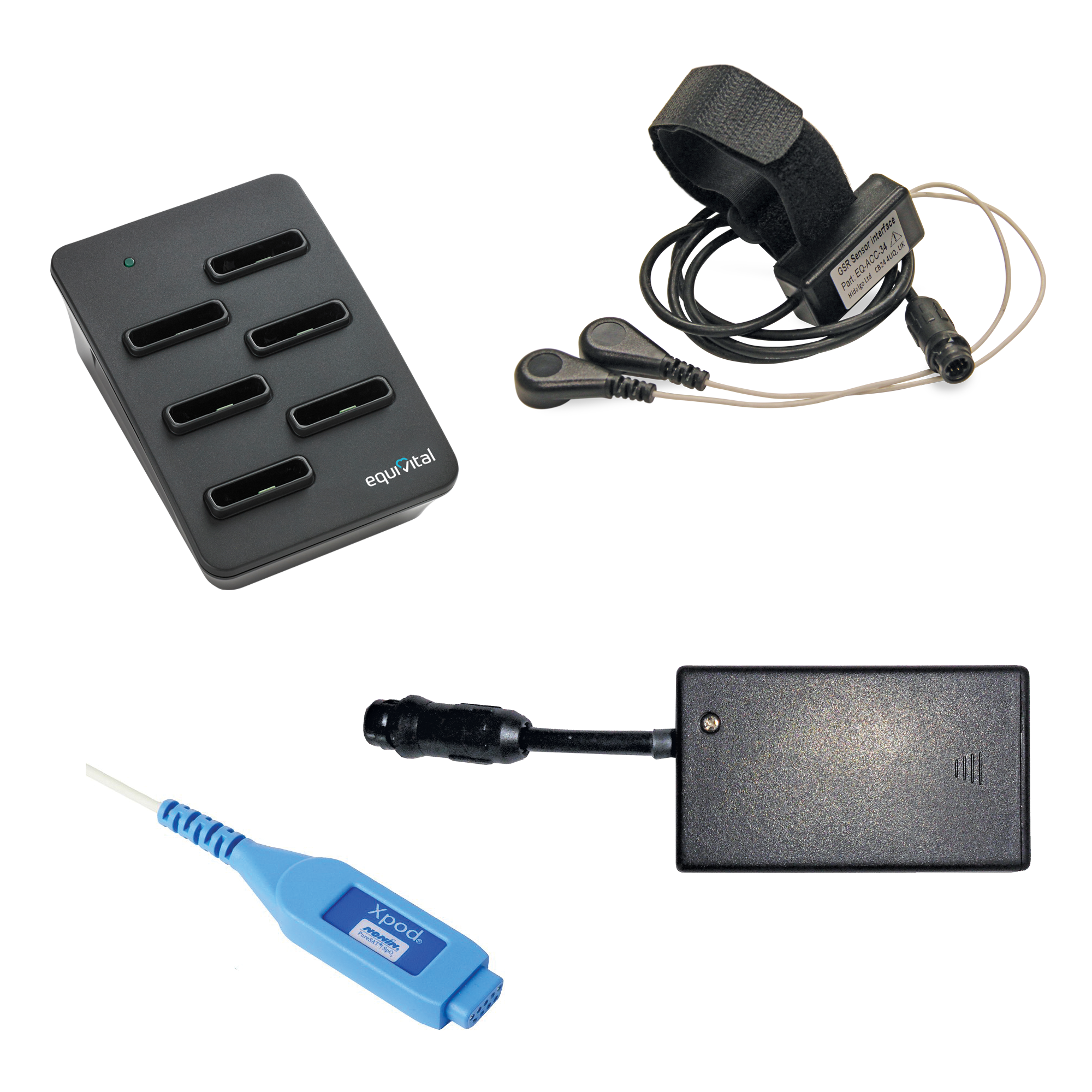

The Galvanic Skin Response Sensor connects to the expansion port on the Equivital SEM to enable recording of Galvanic Skin Response (GSR) signals. It consists of a small box that can fit inside the Equivital Sensor Belt or be worn on the wrist as well as short leads terminating in standard 'Snap Lead' connectors suitable for use with the MLA1010 disposable electrodes. Note that since the Galvanic Skin Response Sensor connects to the SEM's only expansion port this cannot be used in conjunction with any other accessory that uses this port (i.e the Equivital SEM External Battery Pack)

Equivital 皮肤温度贴片是一种一次性贴片，由 Equivital 核心温度药丸/皮肤贴片激活器激活，将向附近的 Equivital SEM 发射无线温度信号。它的一侧有胶粘剂，可以轻松地贴在皮肤上。它的直径为 57 mm，厚度为 5.3 mm，重量为 7.5 g。电池激活时可持续 240 小时。贴片的保质期为 1 年。准确度为 +-0.1C，温度范围为 32 - 42C。传输范围为 < 2m。

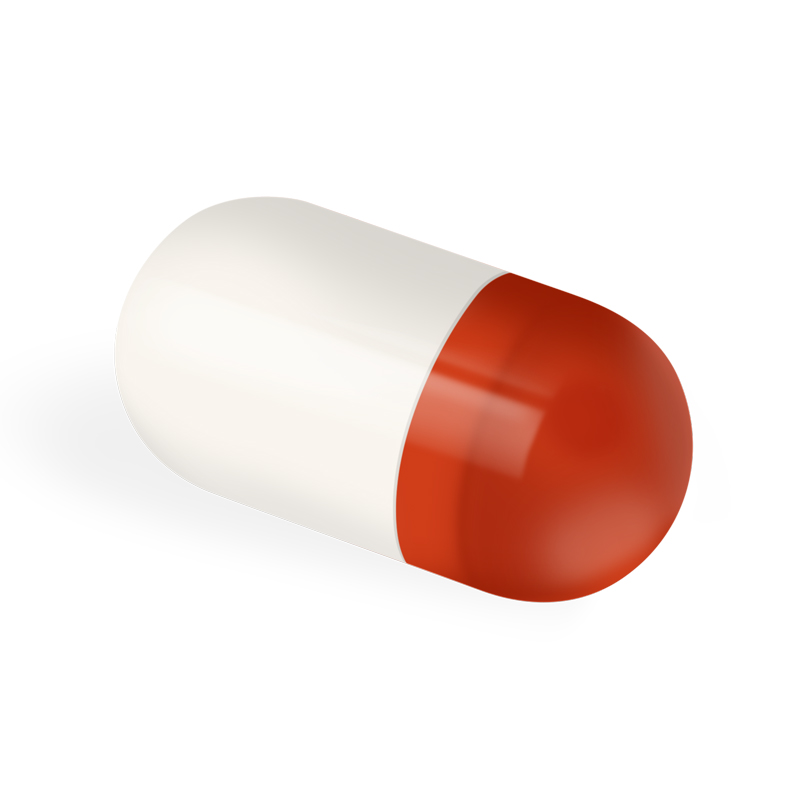

Equivital 核心温度胶囊是一种一次性胶囊，一旦 Equivital 核心温度药丸/皮肤贴片被激活器激活并吞咽后，将每 15 秒钟向附近的Equivital SEM 发射无线温度测量信号。它测量直径为 8.5 mm，长度为 23 mm，重量为 1.6 克。不可更换电池激活后可持续 12-48 小时。准确度为 +-0.1C，温度范围为 32 - 42C。传输范围为 < 1m。

无线脉搏血氧饱和度传感器由手腕穿戴单元组成（尺寸 5x7.5x2cm 和重 70 克），连接一根短导线至橡胶指套。该单元包含显示脉搏率和 SPO2 的数字显示，并且可以通过蓝牙将该信息发送回到 Equivital SEM。单元内采样频率 1Hz ，每隔 15 秒向 SEM 发送平均读数。该单元由 2 节 7 号电池供电，连续使用时持续约 24 小时。

The Equivital SEM External Battery Pack increases the battery life of the SEM to 24-43 hours (depending on configuration used). Note that since the External Battery connects to the SEM expansion port it cannot be used in conjunction with any other accessory that uses this port (i.e the Equivital GSR Ancillary). It is just large enough to accomodate the 3 AAA size batteries it requires to operate and fits inside a dedicated pouch in the Equivital Sensor Belt.

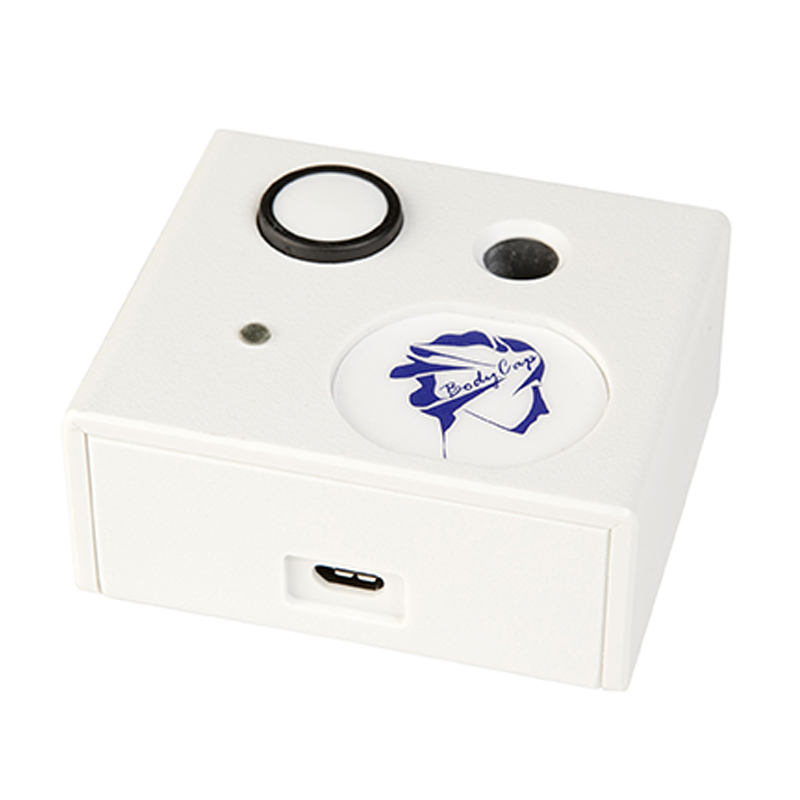

激活 Equivital 皮肤温度贴片和核心温度胶囊需要 Equivital 核心温度胶囊/皮肤贴片激活器。该装置尺寸为 96 x 47 x 27.5 mm，重 65 g，由 2 节 7 号电池供电，设计为每天使用次数少于 5 次时，可持续使用 2 年以上。

The Wired SPO2 Adapter for Equivital consists of Nonin xPod device wired for direct connection to the ancillary port of an Equivital Sensor Belt. It is compatible with a range of Nonin SpO2 sensors (sold separately) such as the MLT321 Finger Clip. Cable length is approx 180 cm (6') and weight is 75g. Note that since the SpO2 sensor connects to the SEM ancillary port it cannot be used in conjunction with any other accessory that uses this port (i.e the Equivital GSR Add-On, or the External Battery Pack).
