カテーテルインターフェースケーブル
Millar Mikro-Tip圧カテーテルに対応するカテーテルインターフェースケーブル各種。
Frequently purchased with カテーテルインターフェースケーブル
概観
Millar社製Mikro-TipTM 圧力カテーテルを、下記のような対応アンプと接続するためのインターフェースケーブルです：
- ADInstrumentsブリッジアンプ
- 圧力コントロールユニット
- Millar圧力インターフェース （Millar圧力システムまたは圧力信号コンディショナー）
- MPVS UltraシングルセグメントPVユニット（販売終了、インターフェースケーブルは引き続き入手可能）
- MPVS UltraPVユニット（大・小動物用）（販売終了。）
- MPVS Duo圧-容積システム
対応するカテーテルインターフェースケーブルの一覧はこちら。
Product Configurations
Catheter Interface Cable (Low Profile to DIN 8, 10ft)
A 3 m (10 ft) cable that connects a single Millar Mikro-Tip pressure catheter with a Low-Profile connector type (flat with 4 pins) to any ADInstruments Bridge Amp.
Catheter Interface Cable (Low Profile to Redel, 10ft)
A 3 m (10 ft) cable that connects a single Millar Mikro-Tip pressure catheter with a Low-Profile connector type (flat with 4 pins) to compatible amplifiers with a Redel input connector, such as:
- Millar Pressure Interface options
- secondary pressure input of a MPVS Ultra Single Segment PV Unit or MPVS Ultra PV Unit
Catheter Interface Cable (Low Profile to Redel, 4ft)
A 1.2 m (4 ft) cable that connects a single Millar Mikro-Tip pressure catheter with a Low-Profile connector type (flat with 4 pins) to compatible amplifiers with a Redel input connector, such as:
- secondary pressure input of a MPVS Ultra Single Segment PV Unit or MPVS Ultra PV Unit
- Millar Pressure Interface options
Catheter Interface Cable (Low Profile to TC-510, 10ft)
A 3 m (10 ft) cable that connects a single Millar Mikro-Tip pressure catheter with a Low-Profile connector type (flat with 4 pins) to a Millar Pressure Interface option.
Catheter Interface Cable (Viking to DIN 8, 10ft)
Connects any Mikro-Tip transducer with a Viking connector type to any ADInstruments Bridge Amp, such as the Non Invasive Pulse Tonometer. (Note that most Millar Mikro-Tip Catheters are now manufactured with a Low Profile connector.)
Catheter Catheter Interface Cable (Viking to Redel, 10ft)Interface Cable (Viking to PCU-2000, 10ft)
Connects any Mikro-Tip transducer with a Viking connector type to a Millar Pressure Interface option, such as the Non Invasive Pulse Tonometer. (Note that most Millar Mikro-Tip Catheters are now manufactured with a Low Profile connector.)
Catheter Interface Cable (Viking to TC-510, 10ft)
Connects any Mikro-Tip transducer with a Viking connector type to a Millar Pressure Interface Option such as the Non Invasive Pulse Tonometer. (Note that most Millar Mikro-Tip Catheters are now manufactured with a Low Profile connector.)

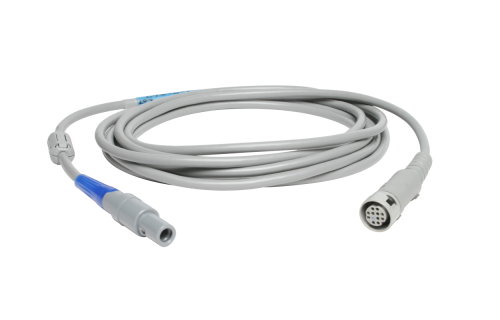

PV Extension Cable (Ventri-Cath to MPVS Ultra, 10ft)
10ft extension cable designed to connect the MPVS-Ultra Pressure-Volume Unit (large and small animals) to the Ventri-Cath series animal pressure-volume (PV) catheters (large animal), both from Millar.
