概観

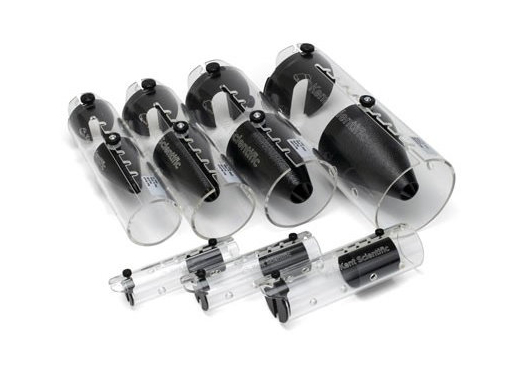

NIBP CODA® モニターセット向けの透明な円筒形の齧歯類ホルダーです。
ホルダーのサイズは7種類あります（マウス用3種類、ラット用4種類）。各ホルダーは共通のトレイベース（各ホルダーに1つずつ付属）と、実験中の呼吸路も確保できるノーズコーンが付属します。
動物の体重を基準としてホルダーを選ぶことを推奨します。
Product Configurations

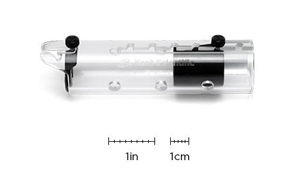

CODA NIBP Mouse Holder (Sml, <25g)
A clear acrylic holder suitable for holding mice weighing up to 25g, while performing non-invasive tail blood pressure measurements. Includes an adjustable nose cone that allows for unrestricted breathing. Inside diameter of 1.00’’ (25.4 mm) and length of 3.50’’ (88.0 mm).

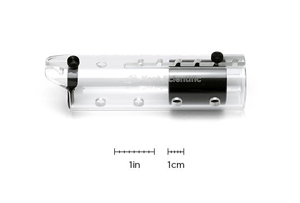

CODA NIBP Mouse Holder (Med, 25-50g)
A clear acrylic holder suitable for holding mice weighing 25 and 50g, while performing non-invasive tail blood pressure measurements. Includes an adjustable nose cone that allows for unrestricted breathing. Inside diameter of 1.25’’ (31.75 mm) and length of 4.25’’ (107.95 mm).

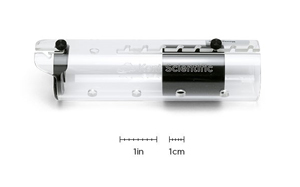

CODA NIBP Mouse Holder (Lrg, 50-75g)
A clear acrylic holder suitable for holding mice weighing 50 and 75g, while performing non-invasive tail blood pressure measurements. Includes an adjustable nose cone that allows unrestricted breathing. Inside diameter of 1.50’’ (38.1 mm) and length of 5.25’’ (133.35 mm).

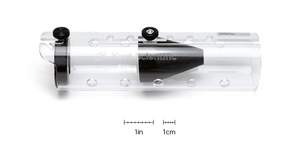

CODA NIBP Rat Holder (Sml, 75-200g)
A clear acrylic holder suitable for holding rats weighing 75 and 200g, while performing non-invasive tail blood pressure measurements. Includes an adjustable nose cone that allows unrestricted breathing. Inside diameter of 2.00’’ (50.8 mm) and length of 6.50’’ (165.1 mm).

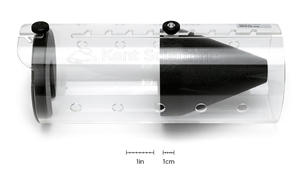

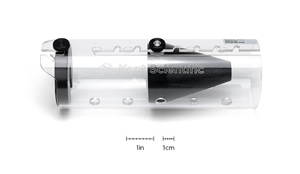

CODA NIBP Rat Holder (Med, 200-300g)
A clear acrylic holder suitable for holding rats weighing 200 and 300g, while performing non-invasive tail blood pressure measurements. Includes an adjustable nose cone that allows unrestricted breathing. Inside diameter of 2.25’’ (57.15 mm) and length of 7.00’’ (177.8 mm).
CODA NIBP Rat Holder (Lrg, 300-500g)
A clear acrylic holder suitable for holding rats weighing 300 and 500g, while performing non-invasive tail blood pressure measurements. Includes an adjustable nose cone that allows unrestricted breathing. Inside diameter of 3.00’’ (76.2 mm) and length of 7.50’’ (190.5 mm).
CODA NIBP Rat Holder (XLrg, >500g)
A clear acrylic holder suitable for holding rats weighing >500g, while performing non-invasive tail blood pressure measurements. Includes an adjustable nose cone that allows unrestricted breathing. Inside diameter of 3.50’’ (88.9 mm) and length of 8.00’’ (203.2 mm).
