Radnoti白金刺激電極
Radnotiティッシオーガンバス装置またはシステムと使用し、互換性のあるスティムレータを介して組織サンプルに電気刺激を与えます。様々な種類の白金電極をご用意しております。

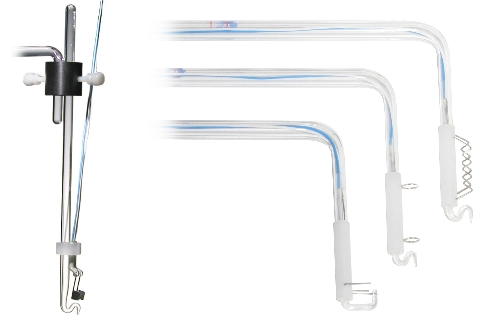

概観
Radnoti組織オーガンバス装置またはシステム（PowerLabデータ収集システムを含む4、8、16組織チャンバー構成）と使用し、互換性のあるスティムレータを介して組織サンプルに電気刺激を与えます。様々な種類の白金電極をご用意しております。
ユニバーサル白金電極
この電極は様々な形状があり（ストレート、コイル、ジグザグ、L字型、フラット）10mL以上のRadnoti Tissue-Organ Bathチャンバーでの使用に適しています。いずれの形状もRadnoti製品のユニバーサルホルダーに適合します。電極を垂直・水平方向いずれにも調整でき、組織サンプルに対してリード線を正確に配置することができます。

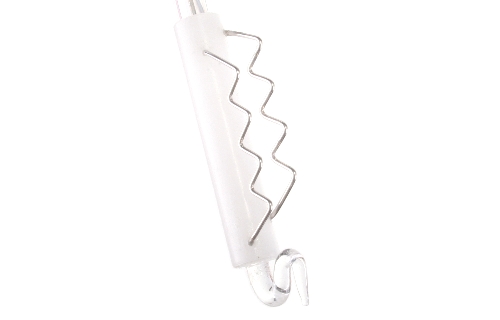

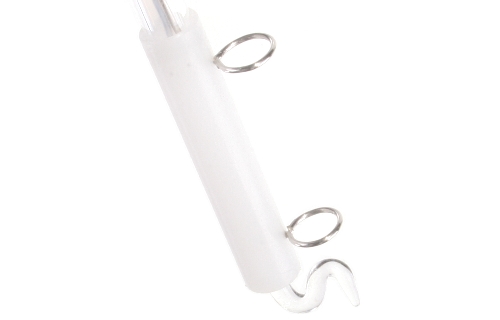

組織支持電極と刺激電極のセット
これらのセット電極は適切な5-10mLまたは25-50mLのRadnotiティッシュオーガンバスで使用できます。ガラス製組織フックまたは下部のL字型サポートと適切な刺激電極を組み合わせ、効果的に効率を高め、バスチャンバー内のパーツを減らして実験できます。
Product Configurations

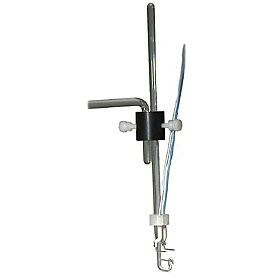

Universal Holder with L-Shaped Electrode
Configured and recommended for use with tissue ring preparations, which include blood vessels. It is compatible with the 5-10mL and 25-50mL Tri Supports.

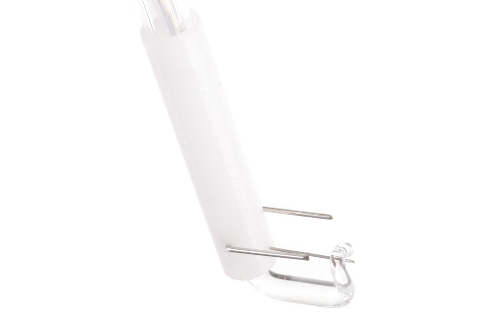

L-Type Stimulating Electrode with Tissue Support
It has a lower L-shaped tissue support with two horizontal platinum wire electrodes, and is designed to hold (with 158817 or 158819 Tri Supports) and stimulate a tissue ring, which include blood vessels.

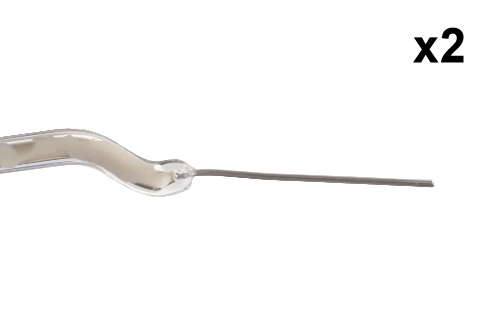

Straight Platinum Lead Electrode Insert (2 pk)
A set of two platinum straight wire electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a field stimulation across a small thin or narrow tissue strip or spiral-cut tissue sample. These are ideal for applications that require less wattage to drive the stimulation.

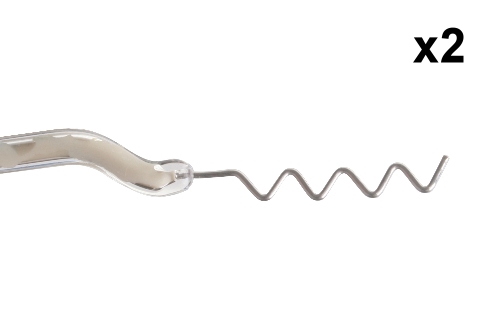

Zig-Zag Platinum Lead Electrode Insert (2 pk)
A set of two platinum zig-zag wire electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a field stimulation across a thicker or longer tissue strip or a larger spiral-cut tissue sample. These provide a greater and more even field across the sample.

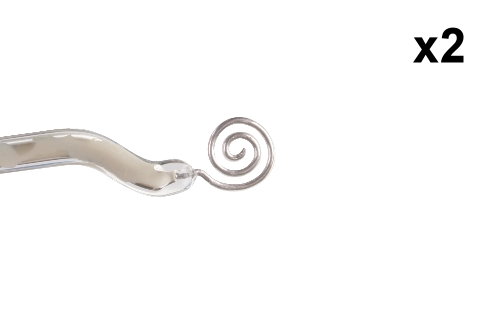

Coil Platinum Lead Electrode Insert (2 pk)
A set of two platinum coil wire electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a uniform field stimulation across either a small tissue strip, spiral-cut tissue or very small tissue samples.

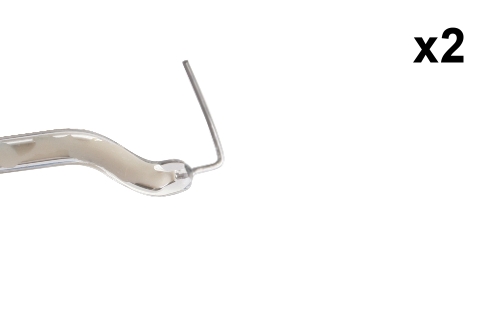

L-shape Platinum Lead Electrode Insert (2 pk)
A set of two platinum L-shape wire electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a uniform field stimulation across tissue ring preparations, which include blood vessels.

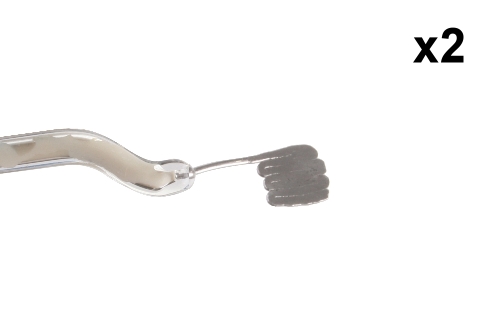

Flat Paddle Platinum Lead Electrode Insert (2 pk)
A set of two platinum flat paddle electrode inserts for use with the Universal Holder design and compatible stimulator, which together are designed to generate a field stimulation across a very small tissue sample. They provide an alternative to coil electrodes and are ideal when maximizing a low stimulation wattage is required.
サポート
サポート記事
Our Support Articles contain answers to common questions, how-tos, solutions, and documentation.
詳細と技術仕様
Technical
ご購入の際は、無端子、BNC、被覆プラグなど、必要な刺激装置コネクタをご指定ください。
