圧力トランスデューサー

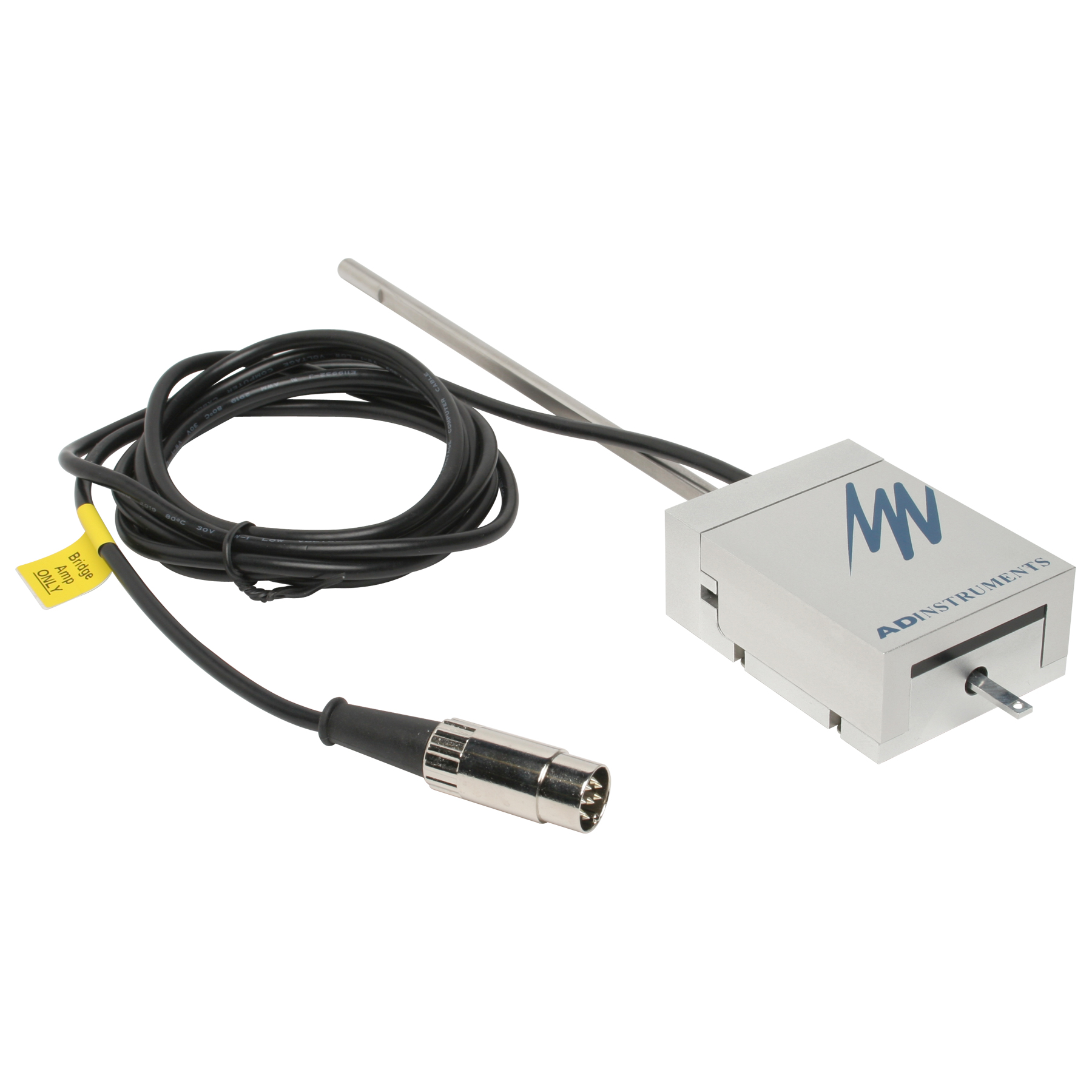

• Wide-range, semi-isometric, strain-gauge force transducer consisting of 5 blades, 4 of which are removable, allowing the stiffness of transducer to be adjusted for the required sensitivity
• Ideal for measuring muscle contractions, tissue tension, or similar biomechanical forces from 10 mg to 1 kg in a wide range of biological preparations involving both large and small animals
• The force transducer is suitable for connection to any ADInstruments Bridge Amp. This transducer is also available with an audio connector suitable for use with a Bridge Pod.

This product is not currently available for purchase in the EU.

• Wide-range, semi-isometric, strain-gauge force transducer consisting of 5 blades, 4 of which are removable, allowing the stiffness of the transducer to be adjusted for the required sensitivity
• Ideal for measuring muscle contractions and laboratory force studies from 10 mg to 1 kg in a wide range of biological preparations involving both large and small animals
• The force transducer is suitable for connection to the Bridge Pod (5-pin audio connector).

This product is not currently available for purchase in the EU.

• Highly sensitive isometric force transducer
• Support rod (diameter 6 mm, length 165 mm) is easily adjustable to suit different micropositioners.
• Ideal for isolated tissue experiments and physiology research where small forces (~0 g) up to 20 g are expected.
• For use with our range of tissue and organ bath systems.
• DIN connector.

• Ultra-sensitive isometric force transducer.
• Support rod (diameter 6 mm, length 165 mm) is easily adjustable to suit different micropositioners.
• Ideal for isolated tissue research applications where small forces (~0 g) up to 2 g are expected.
• For use with our range of tissue and organ bath systems.
• DIN connector.
